Triumph Deadsoft Head Gasket for Routt, Chatland Big Bore Piston Kit

More Views

Availability: Out of stock

Subscribe to back in stock notification

High quality, English-made, head gasket for Triumph big bore kits. More information below:

$39.95

Questions ?

Answer !

Have a Question about Triumph Deadsoft Head Gasket for Routt, Chatland Big Bore Piston Kit ?

Our customer service has the answer.

Ask Us

Description

Details

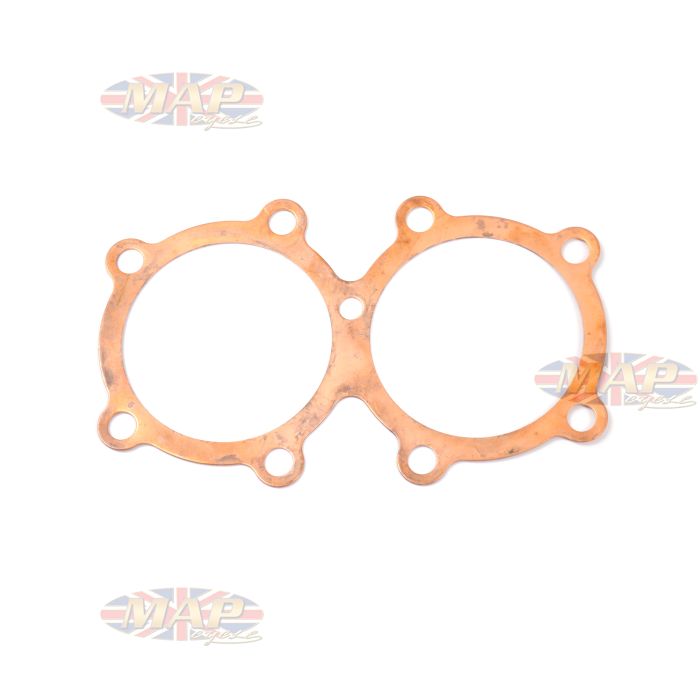

Dead-Soft copper head gasket for Triumph big bore kits

Fits:

Big bore kits with 1/4" center (9th) hole
Routt or Chatland 3.000 thru 3.060" pistons and MAP "Zero Deck" STD (3.000") & 3.010" big bore pistons
MAP's "Zero Deck" STD (3.000") & 3.010" bore pistons

Features:

Outer holes are sized to allow for correct positioning.
Fully annealed Dead-Soft Copper
Made in the U.K.

NOTE:

This gasket is designed specifically for use with Routt or Chatland 3.000 thru 3.060" big bore pistons. This will also work well with MAP's "Zero Deck" STD (3.000") & 3.010" bore pistons. For larger zero deck pistons, see MAP9071 and MAP9072
Measure your piston outside diameter 90-degrees from the pin at the base of the skirt
Please be aware that when using Any Zero Deck piston that the headgasket must never be closer than .010" to the bore or piston will hit causing catastrophic damage!

Additional Information

SKU	MAP9070
Material	Copper
Country of Manufacture	United Kingdom

Additional Information

Additional Information

SKU	MAP9070
Material	Copper
Country of Manufacture	United Kingdom

Reviews

Be the first to review this product

Write Your Own Review

You're reviewing: Triumph Deadsoft Head Gasket for Routt, Chatland Big Bore Piston Kit

*Let us know your thoughts
*Summary of Your Review
*What's your nickname?

Product Question

Product Questions

I have a MAP big bore kit on my 72 Triumph TR6. I need a head gasket and piston rings. The head gasket mikes out at 3.025". The bore, however, seems to be 2.988".
Because the pistons are carboned up from running too rich, I want to hone the bore and replace the rings. The cylinder itself does not have any markings except for a"1" below the right cylinder. Please advise me what rings and gasket I need.
Thanks- Stan Koroleski

-2

Question by: Stan Koroleski on Dec 29, 2015 5:38:00 PM

Routt cylinders/head gaskets are different than the cylinders made by MAP as we offset the center ¼ hole farther out for more gasket surface. If not destroyed by detonation heat, you can anneal the original (heat to red and quench in cold water) else purchase a new one (MAP9080 for up to 3.010” bore). All other gaskets are stock OEM items. Recommend 71-2599/VR for the rocker box as this new design is by far the absolute best for that location.

As to rings we need the serial number from the bottom of the pistons you have as there have been many upgrades over the years (or actual ring dimensions (thickness of each). We have no pistons that would match a 2.988” bore. Smallest for our cylinders would have been 2.992” bore.

Answer by: Web Support (Admin) on Dec 29, 2015 6:35:00 PM

-3
