DI-RECT III Regulator & Rectifier - AC to 12v DC

DI-RECT III Regulator & Rectifier - AC to 12v DC MAP4102

More Views

  • DI-RECT III Regulator & Rectifier - AC to 12v DC MAP4102
DI-RECT III Regulator & Rectifier - AC to 12v DC
MAP Cycle has more than 50 in stock
MAP Cycle has more than 50 in stock
$84.95

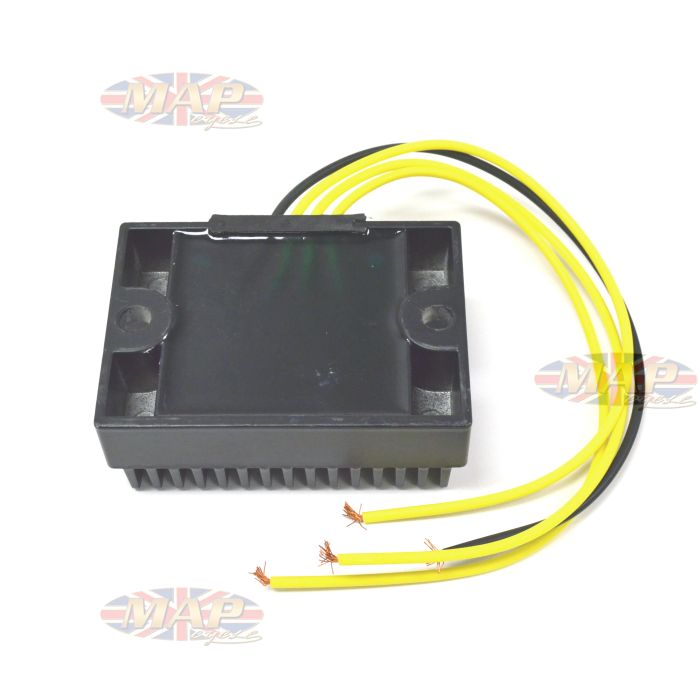

A one-piece finned unit designed to rectify and regulate 3-Phase, 12volt power. Replaces Lucas #83539 rectifier and #49589 diode. Very dependable and at a fraction of the cost for original Lucas parts. Measures 3"x4"x1" thick.
$84.95

Questions ?

Answer !

Have a Question about DI-RECT III Regulator & Rectifier - AC to 12v DC ?

Our customer service has the answer.

Ask Us
Description

Details

This USA-made, high quality regulator has been solving Triumph owner's electrical woes for years. Efficiently regulates and rectifies 3-Phase, 12volt power. Replaces Lucas #83539 rectifier and #49589 diode.

FOR USE ON NEGATIVE GROUND SYSTEMS ONLY

Fits: Triumph BSA and Norton twins with 3-phase

  • Extremely dependable
  • Rectifies and Regulates AC to 12v DC
  • Single Phase
  • 3" X 4" X 1"
  • Finned housing
  • Includes instructions
  • Negative Ground Only
  • Made in U.S.A.
  • Costs a fraction of the original Lucas components it replaces
  • Battery-less operation can be achieved when combined with the MAP capacitor.

NOTE:  For safety, it is best to use a battery for the brightest lights, especially at idle.

Easy installation instructions:

  • The MAP4102 is grounded by bolting the case of this part directly to the frame. Do not put insulators between the frame and the body of the MAP4100.
  • Attach yellow leads to the three alternator wires.
  • The black lead is positive. This lead gets connected to positive side of the battery.
  • Disconnect and remove the old Zener diode on the bike. Be sure to tape up the lead so it can’t short out anywhere.
  • We recommend you save the original parts.
