When it's time for new pistons for your Norton, invest in MAP's billet piston kit - the very best available:
Fits:
- Norton Commando 750 & Atlas 745 models (all years) with stock length connecting rod
Features:
- Race proven and tested under the harshest conditions
- High-silicone content for super strength!
- 4032’s low-expansion properties allows for tighter running clearances which reduces needless engine noise and extends piston life
- Each billet piston is fully CNC machined using the latest SolidWorks software resulting in the lightest possible weight and even heat distribution throughout
- This is the lightest, commercially available, vintage, British bike, piston kit on the market
- Micro-grooved piston skirt for longest life and resistance to scuffing
- Second ring-land accumulator groove helps prevent the unloading of the top ring from trapped blow-by gases
- Updated wrist-pin oiling with four pressure-fed location holes. This increases oil volume to the pin and limits heat buildup in the small end of the rod and wrist pin
- Dual clocked pin bore grooving holds and disperses the oil around the wrist pin
- Race-proven ring pack built by the highest quality, performance ring manufacturer (see ring specs below). Modern metric sizing for the least amount of friction with the best heat transfer for cooler running piston and longer piston life
- Tapered wrist-pin inner diameter for rigidity and lightweight
- Race-type SpiroLoc wrist pin clips for added reliability - they will not ever come out!
- Our piston kits are race-tested world wide!
- Compatible with Nikasil plated bores

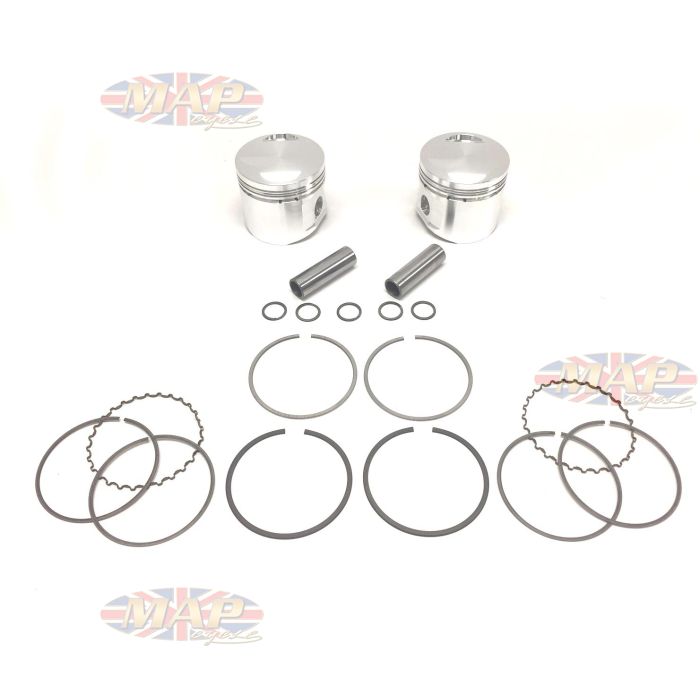

Includes:
- Two race-proven, billet alloy pistons
- Two sets of high-performance piston rings
- Two lightweight wrist pins
- Four SpiroLoc wrist pin clips
- Full installation instructions
Piston Rings:
- 1.0mm Nitrided stainless steel barrel-face top ring
- 1.2mm Ferrox iron “Napier-style” second ring
- 2.8mm Nitrided stainless steel rails with expanded (three-piece design) oil ring
Component weights:
- Piston (based on standard size piston)
MAP9030A 750cc Stock Rod 8.5:1 compression (9:1 Combat) 228 grams
MAP9031A 750cc Stock Rod 10.0:1 compression (Combat requires mods) 237 grams
- Pin with clips: 60 grams
- Rings: 16.5 grams
Note:
- These pistons work best with premium pump gas
